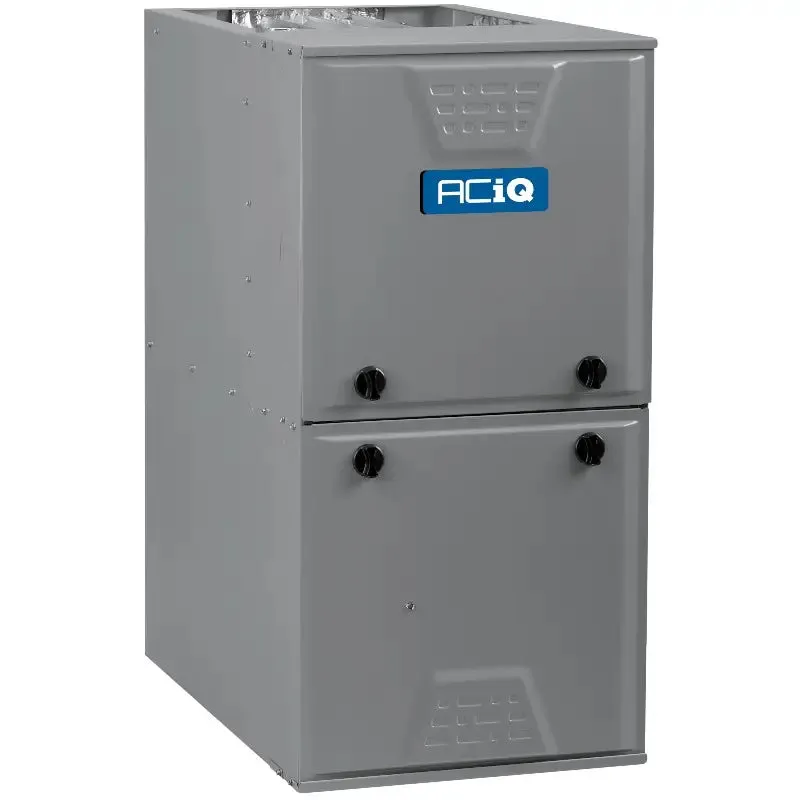

80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace

Designed to be a high-efficiency furnace, the ACiQ N95ESN0802120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

The ACiQ N95ESN0802120A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Features:

• Quiet Comfort: Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

• High Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

• Longer life, longer warranty: Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. This furnace is backed by ACiQ's 10-year parts warranty and lifetime (20-year) heat exchanger limited warranty.

Highlights:

• 80,000 BTU, 96% AFUE natural gas furnace

• Generally suitable for up to an average-sized house in ideal applications

• Multi-positional design, can be installed in the upflow, downflow, or horizontal orientations

• Single stage burner with a multi-speed blower

• Field-convertible to propane with an optional LP kit

• On board self-diagnostics

• Energy Star certified

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N95ESN0802120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.

What's Included:

• 1x 80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace

Gas Furnace Specifications:
